Ball roll ramp | Soccer and hockey turf testing tool

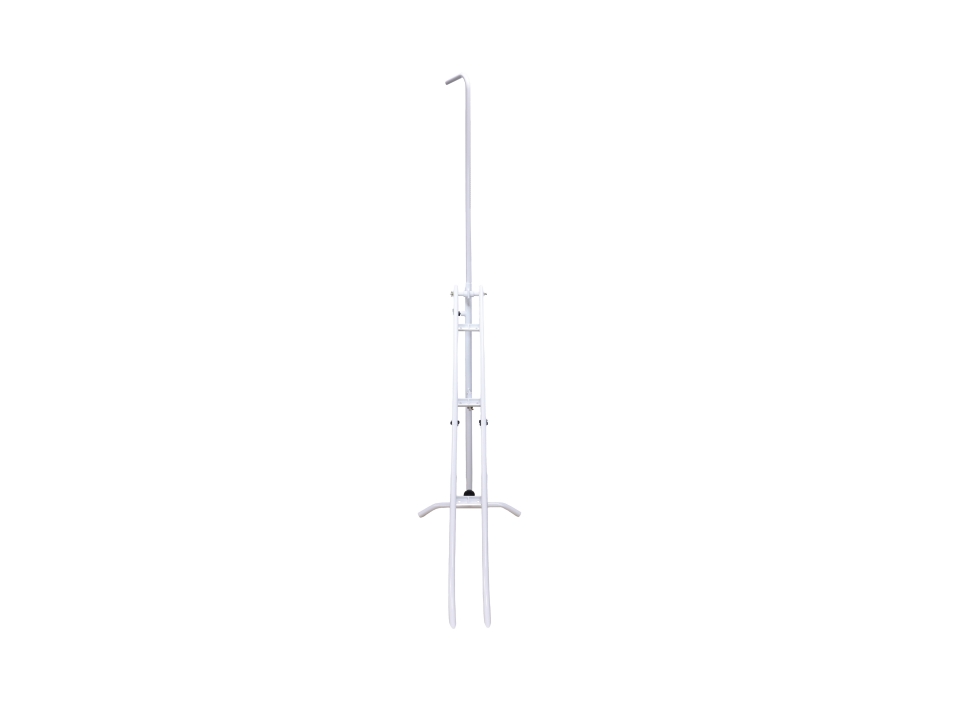

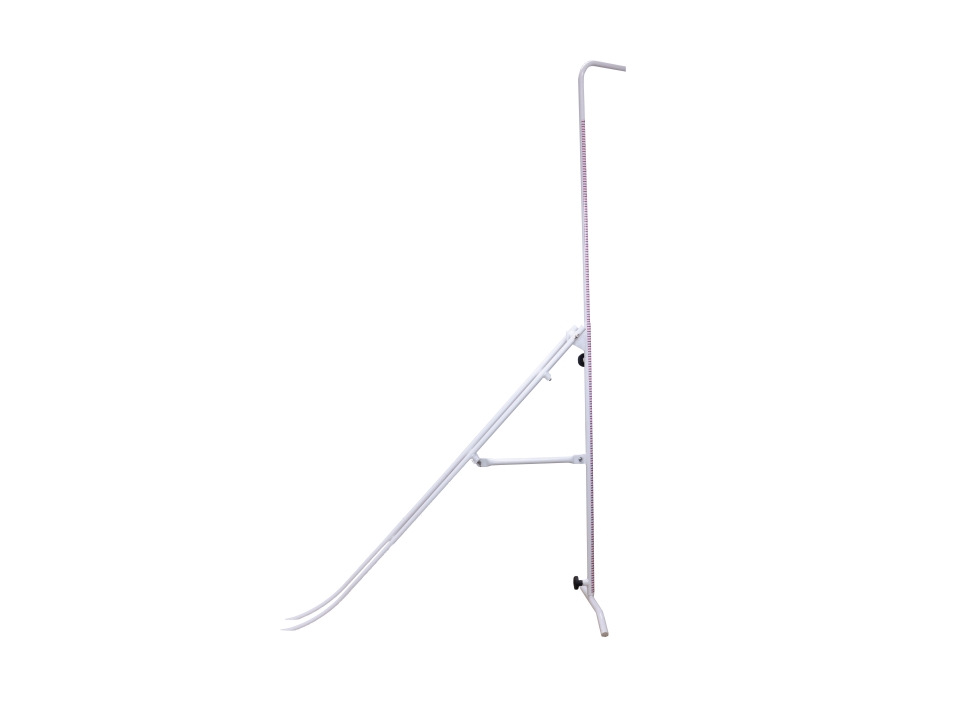

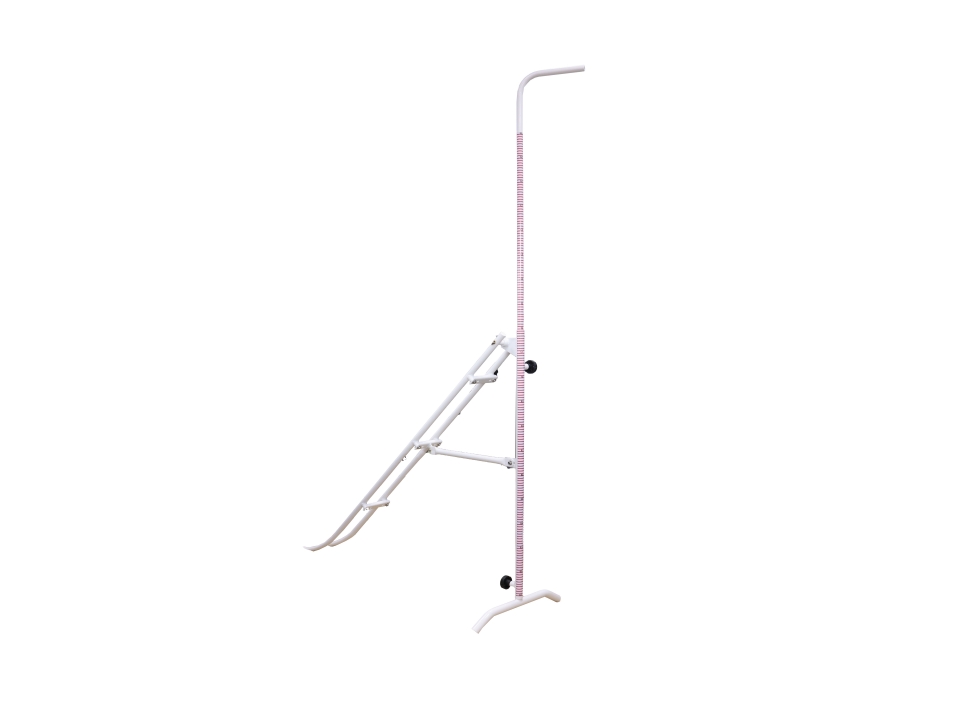

Sodex Sport's Ball Roll Ramp

Part of our football equipment lineup. This is your tool for measuring the distance a ball can roll on a playing field, in order to evaluate artificial soccer and hockey turf surfaces.

Key Features:
- Compliant with FIFA and FIH test regulations.
- Assess ball-rolling behavior for precise turf evaluation.
- Collapsible, two-rail design for effortless portability.
- A 45-degree slope with a 1-meter ball height.
- Lower rail curved to create a 500mm radius.

When the equipment is completely set up, set the ball on it with its center point 1000 ±5 mm above the test area. Release the ball to roll down the ramp until it comes to rest.
